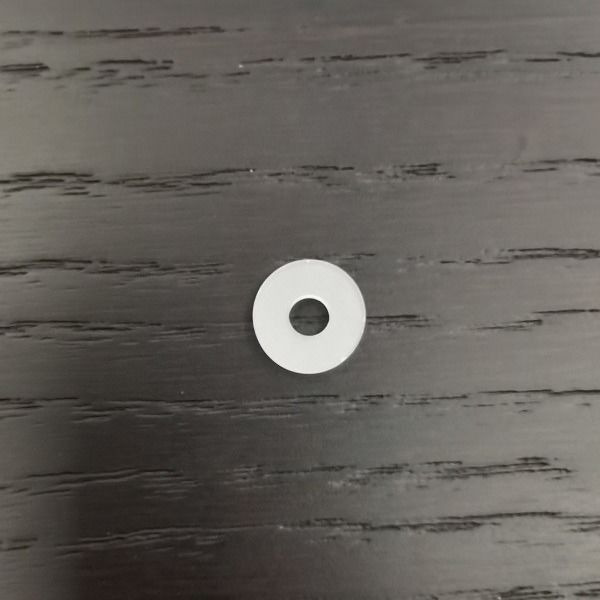

Experience the Exceptional Piezoelectric Effect with Piezoelectric Wafer for Piezoelectric Quartz Ring
Dettagli:
| Luogo di origine: | Cina |
| Marca: | CQT |
| Certificazione: | ISO:14001 |
| Numero di modello: | Quarzo a cristallo singolo |
Termini di pagamento e spedizione:
| Quantità di ordine minimo: | 100 PZ |
|---|---|
| Prezzo: | Negoziabile |
| Imballaggi particolari: | Pacchetto del film, chiuso sotto vuoto |
| Tempi di consegna: | 1-4 settimane |
| Termini di pagamento: | T/T |
| Capacità di alimentazione: | 50000 pc/mese |
|
Informazioni dettagliate |
|||
| Materiale: | Anello di cristallo di quarzo | Misurare: | Forma dell'anello |
|---|---|---|---|
| Tipo di taglio: | A, BT, st, distacco, X, Y, Z, ecc. | Superficie: | Polacco, Lap, Etch |
| Il giorno interno.: | 1.5mm su | Inclusione: | Ia, Ib, I, II, III |
| ECD: | 10cm2, 30cm2, 100cm2, 300cm2 | Applicazione: | Selezione/QMEMS di frequenza |
| Evidenziare: | piezoelectric wafer for quartz ring,high-performance piezoelectric wafer,piezoelectric effect wafer |
||
Descrizione di prodotto
Experience the Exceptional Piezoelectric Effect with Piezoelectric Wafer for Piezoelectric Quartz Ring
Achieve unparalleled accuracy and reliability with our premium piezoelectric quartz rings—engineered to deliver exceptional frequency stability and low phase noise for critical timing, navigation, and sensing systems. Ideal for oscillators, filters, and resonators in telecommunications, aerospace, and medical devices, our quartz rings harness the inherent piezoelectric properties of high-purity quartz (SiO₂) to maintain consistent performance under extreme conditions.
Featuring ultra-low thermal drift and high Q factors , our rings ensure minimal frequency deviation over temperature and time, making them indispensable for GPS, 5G infrastructure, and scientific instrumentation. Their robust mechanical design withstands shock, vibration, and harsh environments, guaranteeing long-term operational integrity.
Available in custom diameters, thicknesses, and frequency ranges (MHz to GHz), our quartz rings are precision-machined to meet your exact specifications. Backed by ISO-certified manufacturing and rigorous quality testing, we deliver consistency, reliability, and traceability for every unit.
Elevate your system’s precision with our piezoelectric quartz rings. Contact us today to discuss your requirements and experience the gold standard in frequency control.
Precision Timing. Uncompromising Reliability.
|
Material |
Single Crystal Quartz Blanks (Piezo / Optical grade) |
|
Synthetic Q-Value |
Min 1.8×10^6, 2.4×10^6, 3.0×10^6 (IEC standards) |
|
Etch Channel Density (ECD) |
2/cm2,10/ cm2,30/ cm2,100/ cm2,300/cm2；Swept Quartz (IEC standards) |
|
Inclusions Density |
Ia,Ib,I, II,III Grades (IEC standards) |
|
Cutting Angle |
X / Y / Z / AT / BT / ST etc. |
|
Outter Diameter |
3mm ~ 200mm |
|
Inner Diameter |
1.5mm ~ 100mm |
|
Thickness |
0.1mm ~ 5mm |
|
Orientation Flat |
As required, or Pencil marked |
|
Surface Finish |
Double side lapped, Double side polished |
|
Polished side Ra |
<1nm or specific per requested |
|
Back Side Criteria |
General is 0.2-0.5µm or as customized |
FAQs:
- Q: What are the products you mainly work on?
A: We look at ourselves as the piezo wafer specialist. We are the very first to work with Single Crystal Quartz in China about 30 years ago. Then gradually we step in the field of LiNbO3, LiTaO3, Quartz glass, LGS, CTGS etc. Especially, if you are looking for a piezo quartz supplier, we are the ultimate choice! We export millions of quartz blanks each year because we master the AT, SC and IT cuts with superior angle precision.
- Q: Can you accept product customization?
A: Yes, of course. We can fabricate as per your request. In addition, we are so experienced with piezo wafers that we can provide you relevant suggestions if you are not 100% sure about your choice. Besides, we do have some standard wafers in stock, please check with us.
- Q: Can you deliver the goods via our courier agent?
A: Yes, we would suggest you go with the courier agent you are most familiar with (DHL, FedEX, UPS etc.). We can ship via your account. And, of course, we will pack the products safely in acceptable size to help you save the shipping cost. If you need us to take care of the freight, it’s also not a problem. We also have good discount with the international courier companies.
- Q: How can you guarantee we get what we want safely?
A: The wafer products are fragile and sometimes expensive. The last thing, as the manufacturer, we want to see is the products we make were damaged during courier. As a result, we will pack the wafers adequately and put them in a proper carton filled with buffer sponge. However, accidents are inevitable sometimes. So, please follow the “Acceptance check” steps shown in the drawings below. If the unwanted happened, we will either give the replenishment or refund if you follow the checking steps.
- Q: Can we visit your factory?
A: Sure. Factory inspection is important for large quantity purchase and long-term cooperation. Face to face discussion is what we mostly confident with. During the past years, big names around the world have witnessed our progress in factory build-up. These days, due to the Covid-19 pandemic, we also had the experience of videoconferencing with global buyers.
Acceptance Check
